Computational Science Display Tricks
Speeding Up Computation and Color Ramps

by D.W. Hyatt

Eliminating Unnecessary Arithmetic

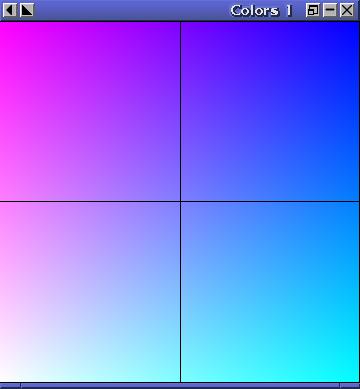

In many computationally intense investigations, a programmer should try to find ways to eliminate unnecessary arithmetic. For instance, in the example shown to the right, the display program drew a block of points 360 pixels by 360 pixels, and then colored each point with various shades according to the RGB values that were generated within the looping process. The values for the x and y coordinates range from -2 to +2 in both directions. There were only 359 steps between adjacent pixels instead of 360 since the first pixel starts at the zero position.

The following variables are predefined:

xmin = -2
xmax = 2
ymin = -2
ymax = 2

The following code essentially cycles through all pixel locations Compare the following two algorithms which produce exactly the same output. The second one is almost twice as fast because careful consideration is given to eliminate wasted computation.



An Inefficient Design with Wasted Computation

Poor Algorithm

DrawGraph()
{ int i, j;
  float x, y, xstep, ystep, r, g, b;
  glBegin(GL_POINTS);
  for (i=0; i<360; i++){
    for (j=0; j<360; j++){
      xstep = (xmax-xmin)/359.0;
      ystep = (ymax-ymin)/359.0;
      x = xmin + xstep * i;
      y = ymin + ystep * j;
      r = i / 360.0;
      g = j / 360.0;
      b = 1.0;
      glColor3f(r, g, b);
      glVertex3f(x, y, 0.0);
      glFlush();
    }
  }
  glEnd();
}

The complete program: colors1.c

Comments

In this program, there is much wasted arithmetic. Multiplication and division are both "expensive" operations that require extra processor time, yet the variables xstep and ystep are never changed. It is important to find out how far apart adjacent pixels are, but these values are recalculated each time through the inner loop resulting in 360 times 360 divisions, or an amazing 129,600 division operations for each of those variables when only one was needed!

The assignment of the blue component, b, never changes and the red component, r, only changes with the outer loop. It is unnecessary to do these operations repeatedly too.

Function calls are also "expensive" operations. The function glFlush() forces the writing of pixels to the screen after each assignment, and thus the overhead of that function call another 129,600 times is unnecessarily extreme. The drawing buffer is never allowed to fill up with anything. A single call after all of the drawing is finished would have been sufficient.



A More Efficient Approach

Better Algorithm

DrawGraph()
{ int i, j;
  float x, y, xstep, ystep, r, g, b;
  xstep = (xmax-xmin)/359.0;
  ystep = (ymax-ymin)/359.0;
  b = 1.0;
  glBegin(GL_POINTS);
  x = xmin;
  for (i=0; i<360; i++){
    r = i / 360.0;
    y = ymin;
    for (j=0; j<360; j++){
      g = j / 360.0;
      glColor3f(r, g, b);
      glVertex3f(x, y, 0.0);
      y += ystep;
    }
    x += xstep;
  }
  glEnd();
  glFlush();
}
The complete program: colors1a.c

Comments

In this program, the variables xstep and ystep have both been moved outside the main loop as well as the assignment of b.

Instead of multiplying the the step variables by the loop indecies to determine the current pixel position, the variables x and y are assigned the initial values xmin or ymin respectfully, and then incremented by adding the step values onto a running total. It is necessary to reinitialize the y-value at each increment in the x-loop, but addition is much less time consuming than multiplication or division.

The function glFlush() has been moved outside of the loop and after the code that plots GL_POINTS, so it is only called once. OpenGL will actually write most of the graph to the screen anyway as the buffer gets filled, but this function just forces the writing of any queued commands.



Color Transitions and Rainbow Effects

The color variations offered by the above program were not too exciting, but the following code will show how to utilize the mathematical functions to help create subtle color differences. Since the command that sets the drawing color, glColor3f( r, g, b), expects values between 0.0 and 1.0 for the three color components (red, green, and blue), a programmer needs to find clever ways to cycle through a number of different shades. A gradual change of color is often referred to as a "color ramp".

The mathematical functions sine and cosine are excellent functions to use for this effect. Since these functions return values between +1 and -1, additional some minor modifications must be made to force them into the proper range between 0 and +1. One approach might be to apply the absolute value to these functions, but take a look at the code of the following program to see what was done.

Using Sine and Cosine for Color Changes

Varying the RGB Values

 glBegin(GL_POINTS);
  x = xmin;
  for (i=0; i<360; i++){
    y = ymin;
    for (j=0; j<360; j++){
      r = 0.5 * (1 + sin( i / 90.0));
      g = 0.5 * (1 + sin ( (i + j) / 60.0));
      b = 0.5 * (1 + cos(j /30.0));
      glColor3f(r, g, b);
      glVertex3f(x, y, 0.0);
      y += ystep;
    }
    x += xstep;
  }
  glEnd();
Complete Program:   colors2b.c

Comments

The sine function evaluates to zero at 0o and reaches its maximum value of 1 at 90o. Since the sine function in C++ expects radians instead of degrees, it is necessary to divide the integer i by some value to slow down the the rapid change that the red component, r, would see as the loop variable varies from 0 to 360. The sine also hits its minimum of -1 at 270o, so by adding 1 to the output of the sine function, and then multiplying by 0.5, the value is scaled back into the range of 0 to 1.

In calculating the g value, a similar approach is made but the value used in the division is modified in order to change the period.

The cosine function used in the calculation of the blue component of the color is similar to the sine approach, except that the cosine of 0o is 1 and it goes to zero when the angle reaches 90o. A different value of 30.0 is used for changing the period of than function.

These are not the only methods of changing the color ramp, but remember to include the math libraries:
    #include < math.h >
in order to have access to sine, cosine, or other math functions.
